AIP Supplement - United Arab Emirates

General Civil Aviation Authority

AIP SUP

20/2026

Effective from 25 JUN 2026

UFN

Published on 25 JUN 2026

OMDB - DUBAI / INTERNATIONAL – TEMPORARY CLOSURES OF TAXIWAYS

INTRODUCTION

This Supplement replaces AIP SUP 40/2025.

The purpose of this AIP Supplement is to inform operators of temporary taxiway closures at OMDB - DUBAI / INTERNATIONAL Airport to facilitate airfield improvement works. The works are planned in various phases as indicated below. This AIP Supplement does not intend to supersede any permanent / existing aerodrome related information published in the AIP.

The effective date of the taxiway closures will be notified by NOTAM and / or Airside Advise Notice (to airport users) ahead of the closures.

Note: The work / closure phases listed below are not in any particular order.

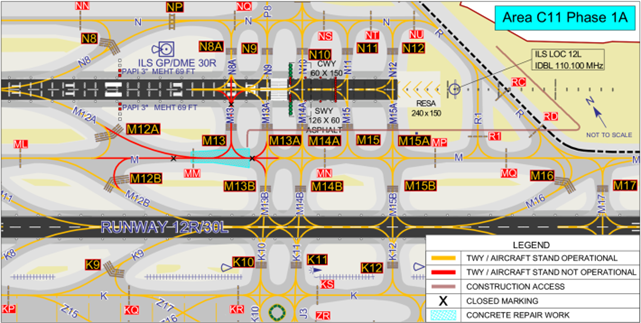

AREA C11 PHASE 1A

  1. Section of TWY M between TWY M12A and TWY M13A closed.
  2. TWY M13 closed.
  3. TWY M13A west link onto TWY M closed.
  4. TWY M13B west link onto TWY M closed.
  5. TWY M12A east link onto TWY M closed.
  6. TWY M12B east link onto TWY M closed.

Figure 1 - Area C11 Phase 1A

AREA C11 PHASE 1B

  1. Section of TWY M between TWY M13 and TWY M14A closed.
  2. TWY M13A and TWY M13B closed.
  3. TWY M14A west link onto TWY M closed.
  4. TWY M14B west link onto TWY M closed.
  5. TWY M13 east link onto TWY M closed.

Figure 2 - Area C11 Phase 1B

AREA C11 PHASE 1C

  1. Section of TWY M between TWY M13A and TWY M15 closed.
  2. TWY M14A and TWY M14B closed.
  3. TWY M15 west link onto TWY M closed.
  4. TWY M13A east link onto TWY M closed.
  5. TWY M13B east link onto TWY M closed.

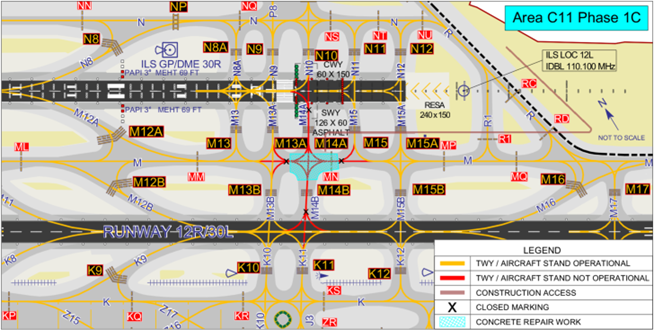

Figure 3 - Area C11 Phase 1C

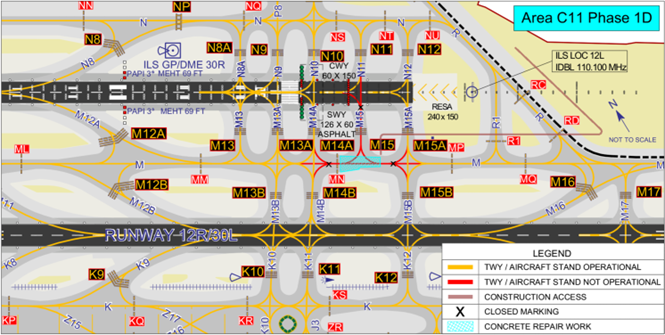

AREA C11 PHASE 1D

  1. Section of TWY M between TWY M14A and TWY M15A closed.
  2. TWY M15 closed.
  3. TWY M15A west link onto TWY M closed.
  4. TWY M15B west link onto TWY M closed.
  5. TWY M14A east link onto TWY M closed.
  6. TWY M14B east link onto TWY M closed.

Figure 4 - Area C11 Phase 1D

AREA M15 PHASE 1A

  1. Section of TXL Z between aircraft stands F8 and F12 closed.
  2. TWY K1 south of TWY K closed.
  3. Crossover TWY Z7 closed.
  4. Crossover TWY Z6 temporarily relocated to the west abeam aircraft stands F6 and F7. The temporary crossover TWY centerline installed with green reflectors instead of centerline lights. Temporary crossover will be available for unrestricted movements up to Code F in CAT I conditions. In CAT II/III conditions, movements may be allowed under “Follow-me” guidance, to be confirmed via NOTAM and/or ATC.
  5. Aircraft Stands F8 and F12 downgraded to Code E.

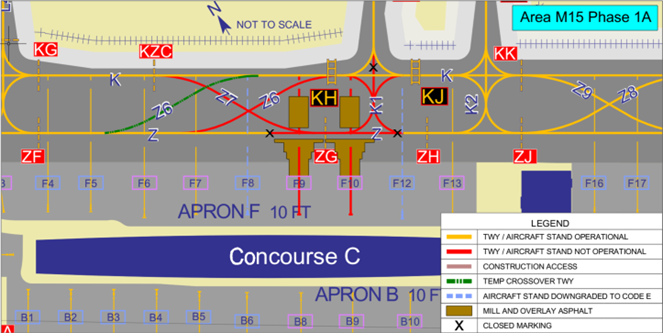

Figure 5 - Area M15 Phase 1A

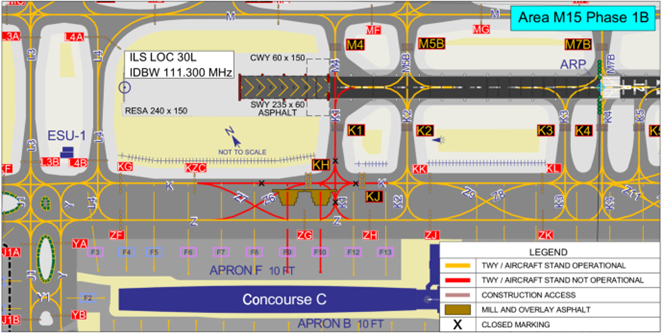

AREA M15 PHASE 1B

  1. Section of TWY K between aircraft stands F7 and F13 closed.
  2. TWY K1, TWY Z6 and TWY Z7 closed.

Figure 6 - Area M15 Phase 1B

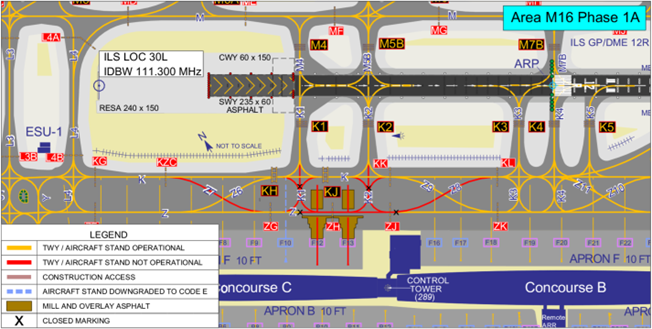

AREA M16 PHASE 1A

  1. Section of TXL Z between aircraft stands F10 and F16 closed.
  2. TWY K1 south of TWY K closed.
  3. TWY K2 south of TWY K closed.
  4. TWY Z7 and TWY Z8 closed.
  5. Aircraft Stand F10 downgraded to Code E.

Figure 7 - Area M16 Phase 1A

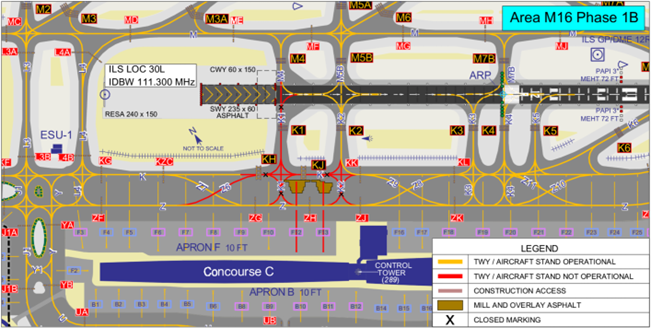

AREA M16 PHASE 1B

  1. Section of TWY K between aircraft stand F9 and TWY K2 closed.
  2. TWY K1 closed.
  3. TWY K2 south of TWY K closed.
  4. TWY Z6 closed.

Figure 8 - Area M16 Phase 1B

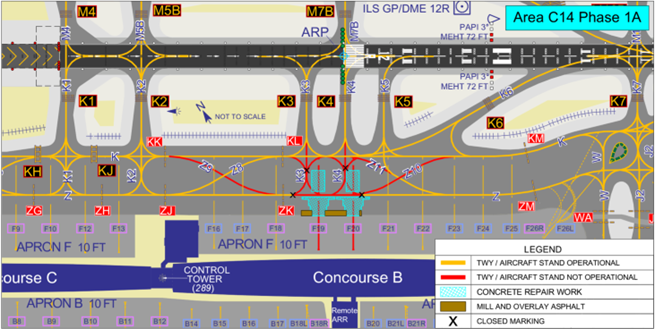

AREA C14 PHASE 1A

  1. Section of TXL Z between aircraft stands F18 and F21 closed.
  2. TWY K3 south of TWY K closed.
  3. TWY K4 south of TWY K closed.
  4. TWY Z9 and TWY Z10 closed.
  5. TWY Z11 west link onto TWY K closed.

Figure 9 - Area C14 Phase 1A

AREA C17 PHASE 1A

  1. Section of TXL Z between aircraft stands F23 and F26R closed.
  2. TWY Z11 closed.

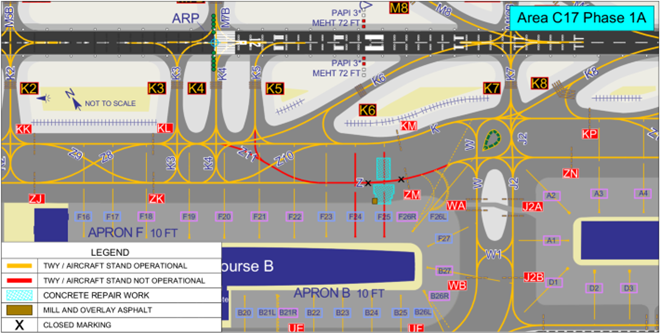

Figure 10 - Area C17 Phase 1A

AREA C16 PHASE 1A

  1. Section of TXL Z between aircraft stands F22 and F26R closed.
  2. TWY Z10 and TWY Z11 closed.

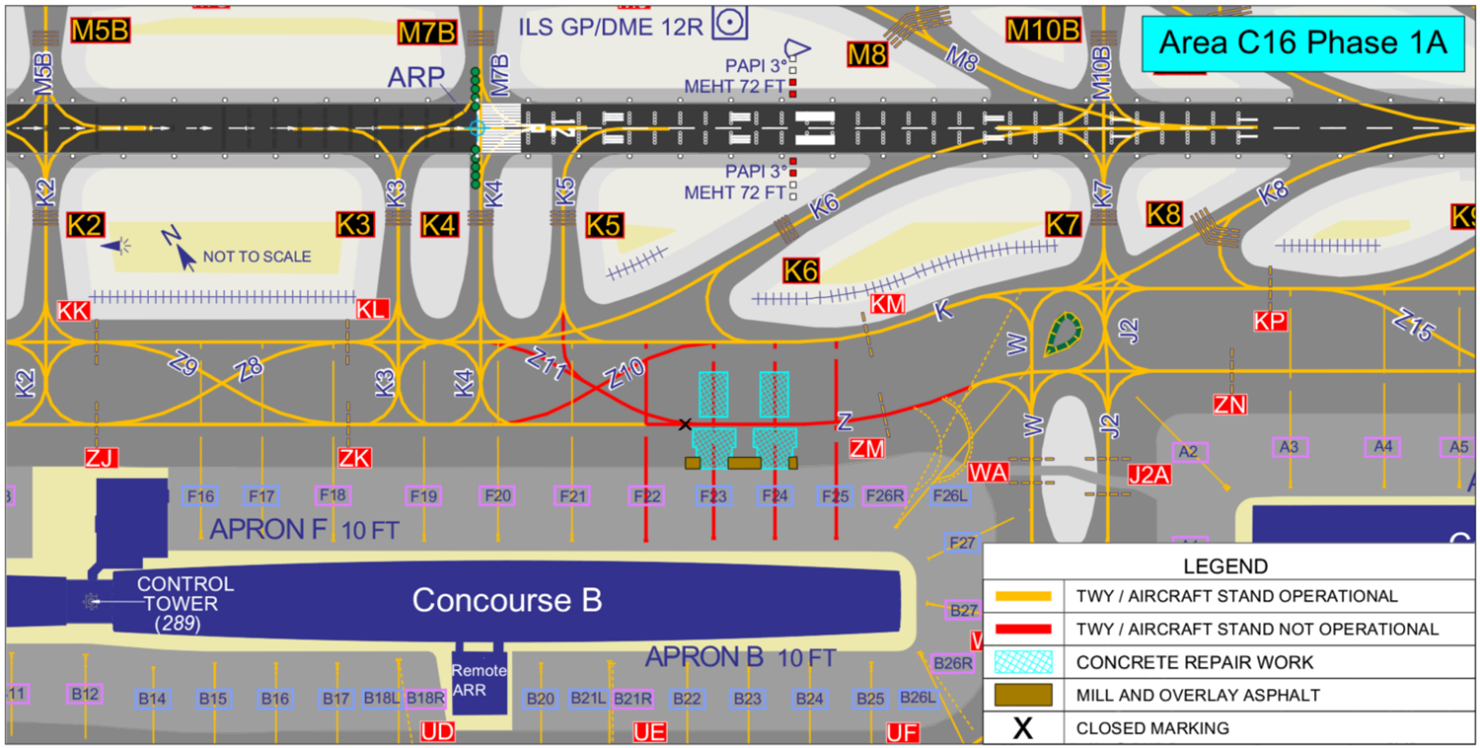

Figure 11 - Area C16 Phase 1A

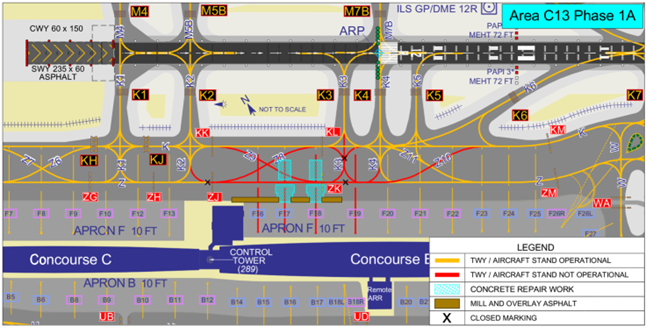

AREA C13 PHASE 1A

  1. Section of TXL Z between TWY K2 and TWY K4 closed.
  2. TWY K3 south of TWY K closed.
  3. TWY Z8, TWY Z9 and TWY Z10 closed.
  4. TWY K2 east link onto TXL Z and TWY K4 west link onto TXL Z closed.

Figure 12 - Area C13 Phase 1A

AREA C13 PHASE 1B

  1. Section of TWY K between TWY K2 and TWY K4 closed.
  2. TWY K3 closed.
  3. TWY Z8 and TWY Z9 closed.
  4. TWY Z11 west link onto TWY K closed.

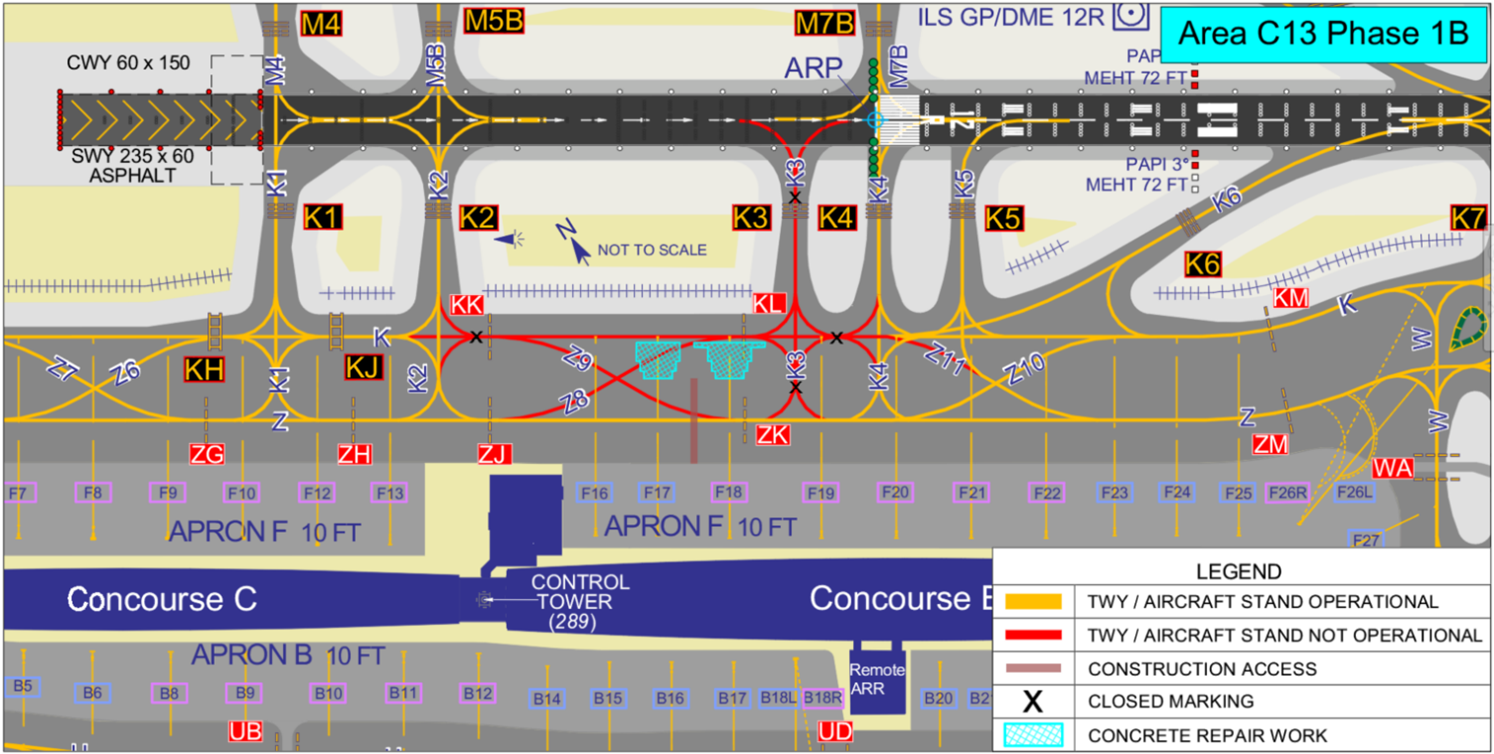

Figure 13 - Area C13 Phase 1B

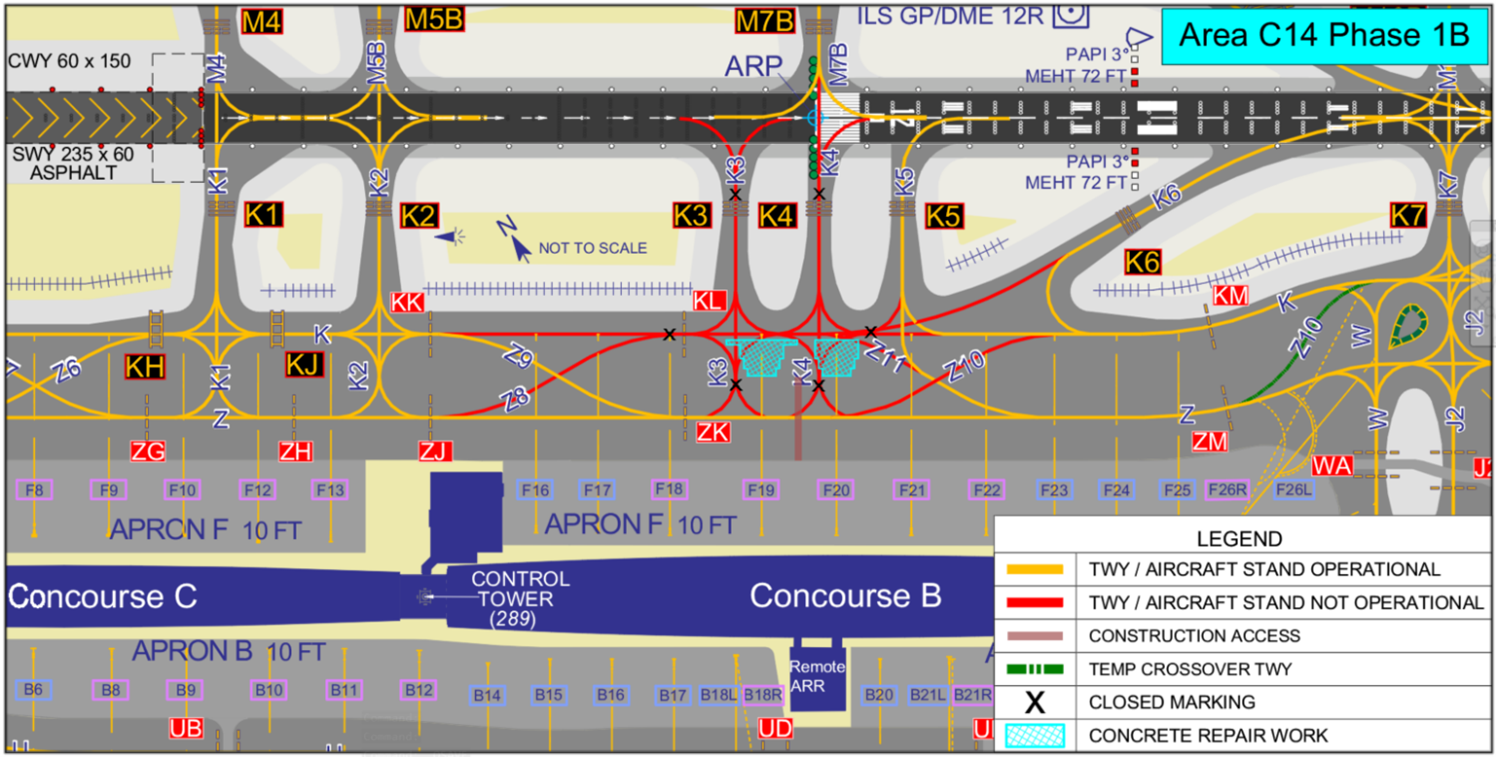

AREA C14 PHASE 1B

  1. Section of TWY K between TWY Z9 and TWY K5 closed.
  2. TWY K3 and TWY K4 closed.
  3. TWY Z8 closed.
  4. TWY Z11 west link onto TWY K closed.
  5. TWY K6 west link onto TWY K closed.
  6. Crossover TWY Z10 temporarily relocated to the east between aircraft stands F25 and F26R. The temporary crossover TWY centerline installed with green reflectors instead of centerline lights. Temporary crossover will be available for unrestricted movements up to Code F in CAT I conditions. In CAT II/III conditions, movements may be allowed under “Follow-me” guidance, to be confirmed via NOTAM and/or ATC.

Figure 14 - Area C14 Phase 1B

AREA C15 PHASE 1A

  1. Section of TXL Z between aircraft stands F19 and F23 closed.
  2. TWY K4 south of TWY K closed.
  3. TWY Z10 and TWY Z11 closed.
  4. TWY K3 east link onto TXL Z closed.

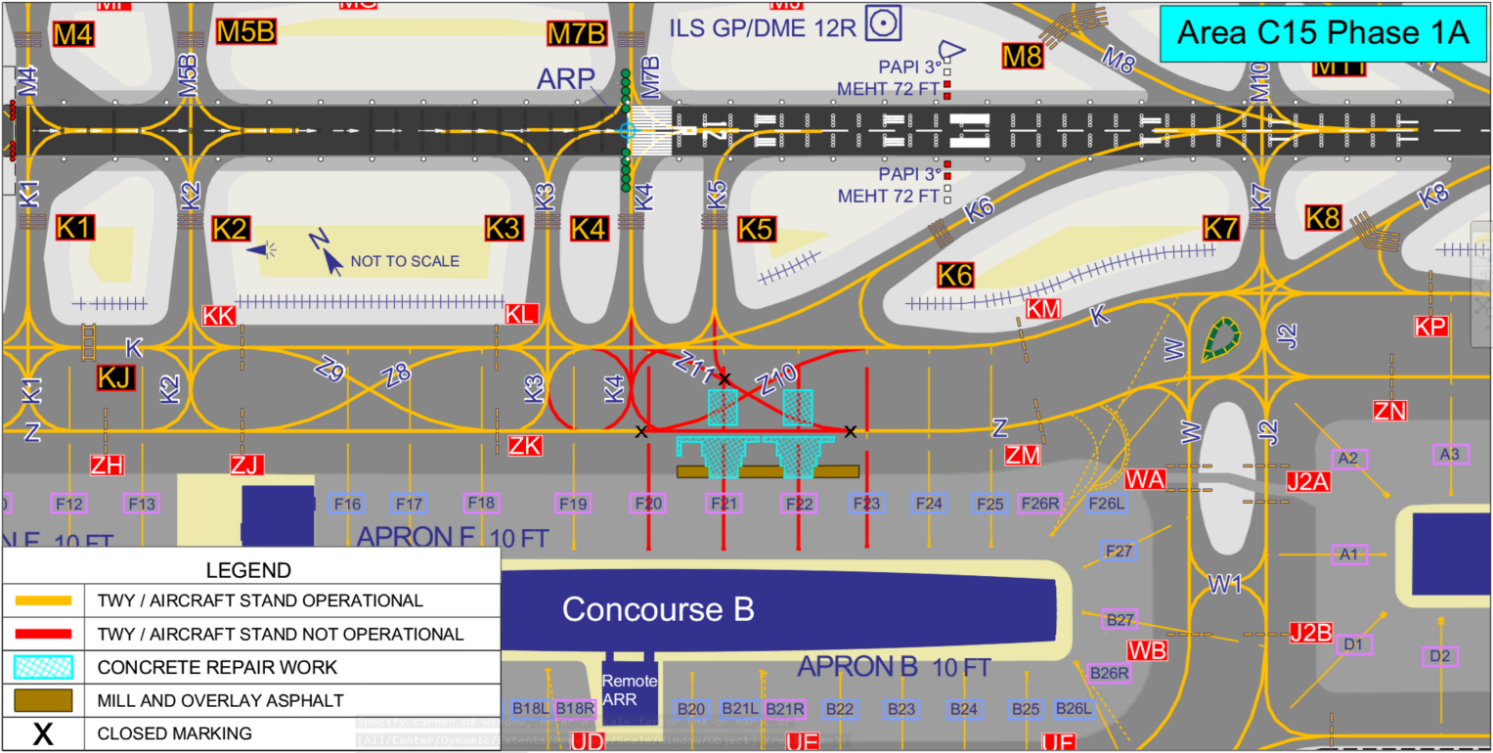

Figure 15 - Area C15 Phase 1A

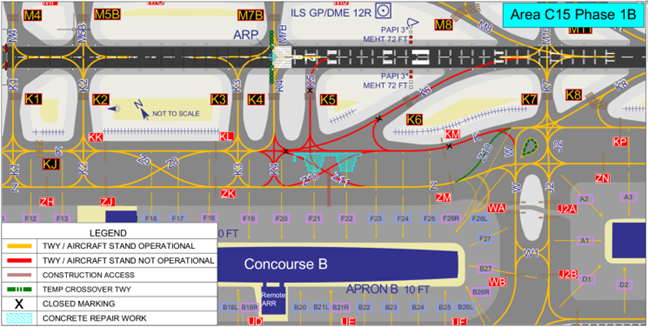

AREA C15 PHASE 1B

  1. Section of TWY K between TWY K4 and aircraft stand F26R closed.
  2. TWY K5 and TWY K6 closed.
  3. TWY K4 south of TWY K closed.
  4. Crossover TWY Z11 closed.
  5. Crossover TWY Z10 temporarily relocated to the east between aircraft stands F25 and F26R. The temporary crossover TWY centerline installed with green reflectors instead of centerline lights. Temporary crossover will be available for unrestricted movements up to Code F in CAT I conditions. In CAT II/III conditions, movements may be allowed under “Follow-me” guidance, to be confirmed via NOTAM and/or ATC.

Figure 16 - Area C15 Phase 1B

AREA C16 PHASE 1B

  1. Section of TWY K between TWY K5 and aircraft stand F26R closed.
  2. TWY K6 closed.
  3. Crossover TWY Z11 closed.
  4. Crossover TWY Z10 temporarily relocated to the east between aircraft stands F25 and F26R. The temporary crossover TWY centerline installed with green reflectors instead of centerline lights. Temporary crossover will be available for unrestricted movements up to Code F in CAT I conditions. In CAT II/III conditions, movements may be allowed under “Follow-me” guidance, to be confirmed via NOTAM and/or ATC.

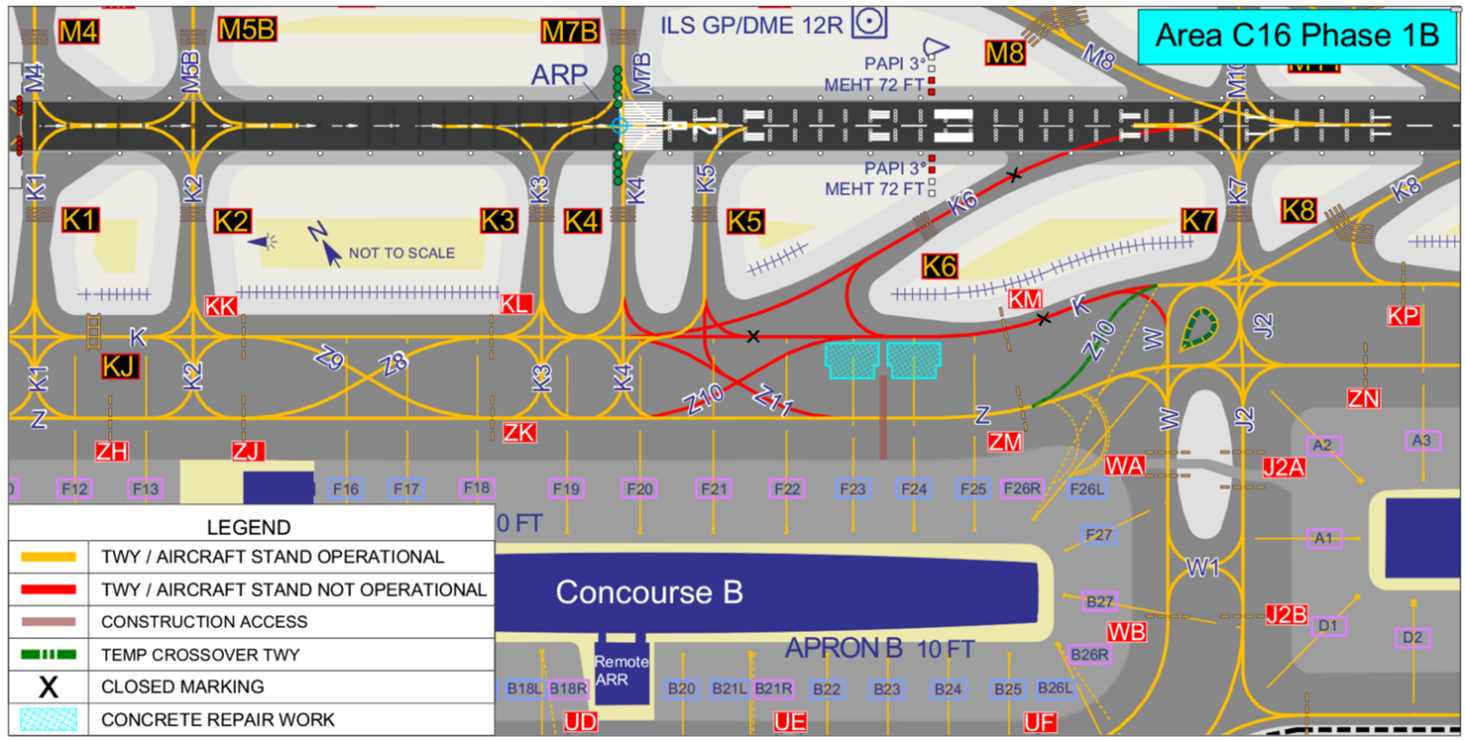

Figure 17 - Area C16 Phase 1B

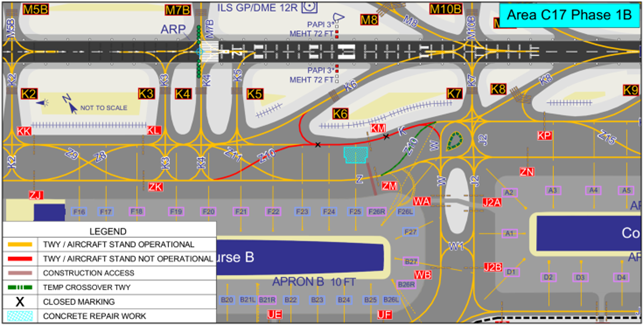

AREA C17 PHASE 1B

  1. Section of TWY K between aircraft stands F23 and F26R closed.
  2. TWY K6 east link onto TWY K closed.
  3. Crossover TWY Z10 temporarily relocated to the east between aircraft stands F25 and F26R. The temporary crossover TWY centerline installed with green reflectors instead of centerline lights. Temporary crossover will be available for unrestricted movements up to Code F in CAT I conditions. In CAT II/III conditions, movements may be allowed under “Follow-me” guidance, to be confirmed via NOTAM and/or ATC.

Figure 18 - Area C17 Phase 1B

AREA M27 PHASE 1A

  1. Section of TXL J behind aircraft stands B8 and B9 closed.
  2. Section of TXL U behind aircraft stands B8 and B9 temporarily relocated to the north to allow Code F movements. The centerline for this section will not have centerline lights but will be installed with green reflectors.
  3. Section of crossover TWY U1 linking to the temporary section of TXL U will not have centerline lights but will be installed with green reflectors.
  4. Crossover TWY U2 relocated temporarily to the east between aircraft stands B10 and B12 linking temporary section of TXL U. The centerline for temporary crossover TWY U2 will not have centerline lights but will be installed with green reflectors.
  5. Crossover TWY U3 closed.
  6. Crossovers TWY U1 and TWY U2 will be Code F compatible.
  7. Temporary TWY sections will be available for unrestricted movements up to Code F in CAT I conditions. In CAT II/III conditions, movements may be allowed under “Follow-me” guidance, to be confirmed via NOTAM and/or ATC.
  8. Existing sections of TXL U are compatible for Code E and below only. Therefore, Code F aircraft moving on the temporarily relocated section of TXL U must be vigilant not to continue straight on the Code E TXL U sections.

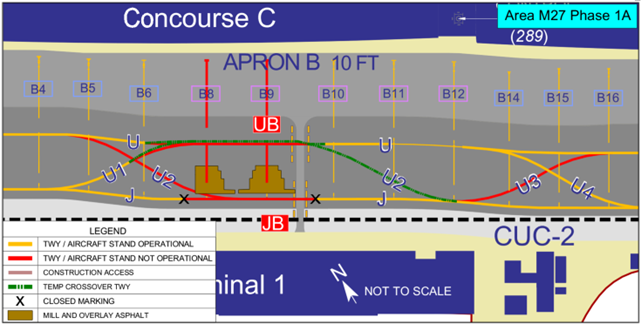

Figure 19 - Area M27 Phase 1A
