| AIP Supplement - United Arab Emirates General Civil Aviation Authority | AIP SUP 36/2022 Effective from 14 JUL 2022 UFN Published on 14 JUL 2022 |
OMDB - DUBAI / INTERNATIONAL – TEMPORARY CLOSURES OF TAXIWAYS
INTRODUCTION
This AIP Supplement replaces AIP SUP 68/2021.
The purpose of this AIP Supplement is to inform operators of temporary taxiway closures at OMDB - DUBAI / INTERNATIONAL Airport to facilitate airfield improvement works. The works are planned in various phases as indicated below.
The effective date of the taxiway closures will be notified by NOTAM and / or Airside Advise Notice (to airport users) ahead of the closures.
Note: The work / closure phases listed below are not in any particular order.

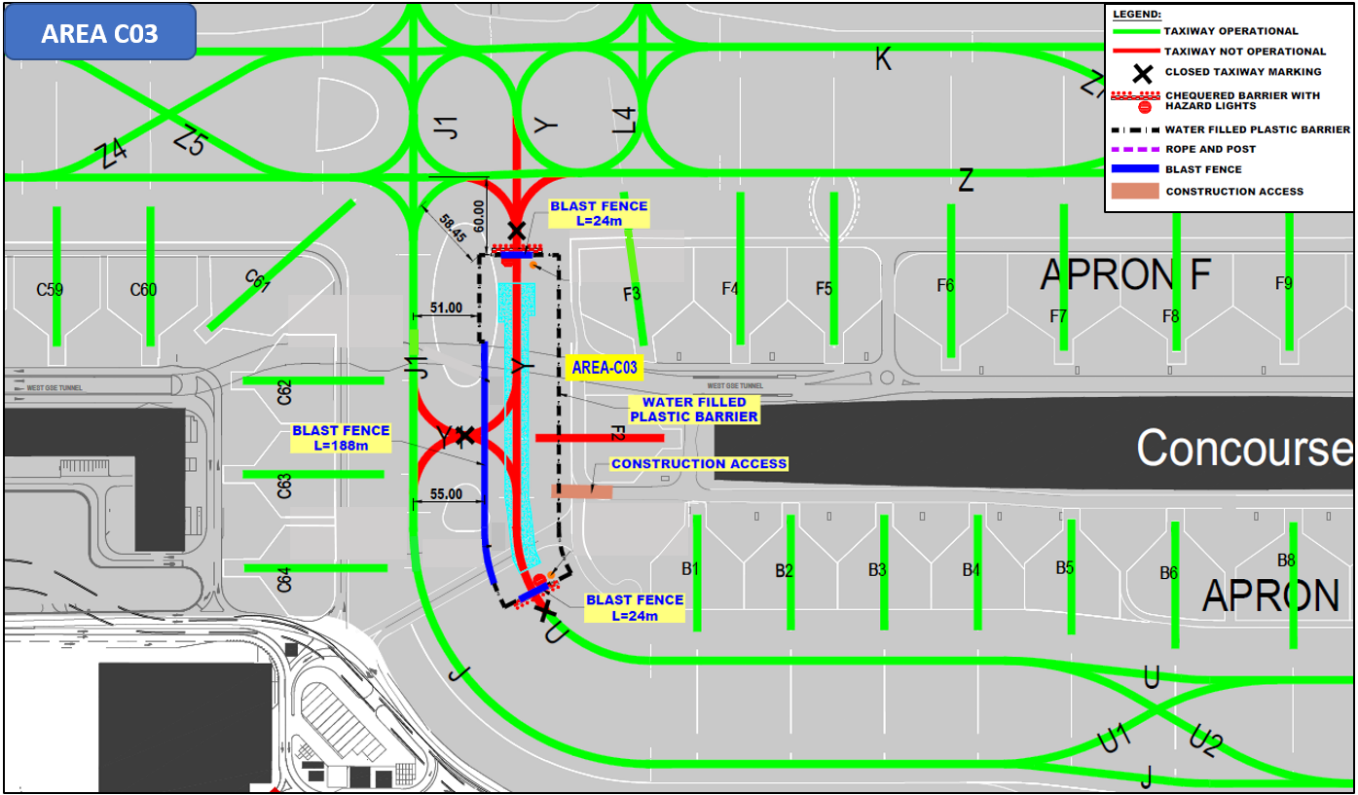

AREA C03
- Section of TXL Y south of TXL Z closed.
- TWY Y1 closed.
Figure 1 - AREA C03

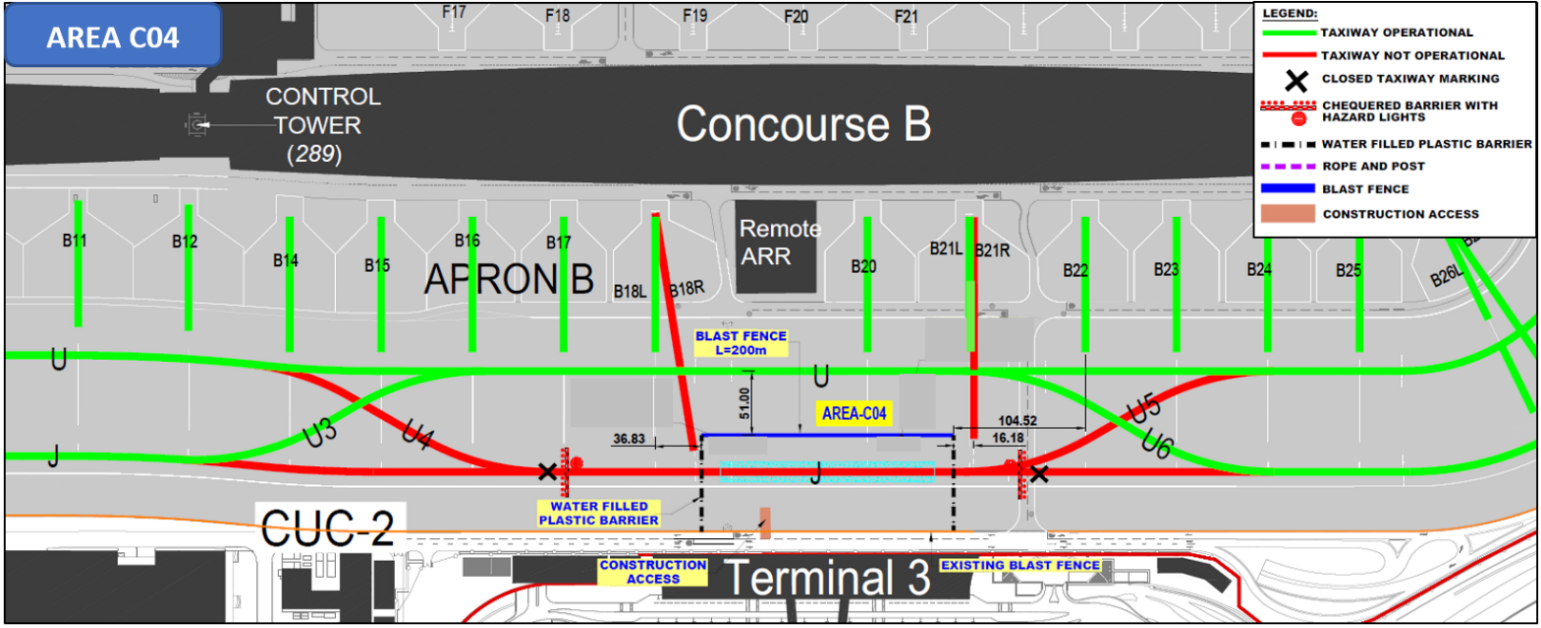

AREA C04
- Section of TXL J between TWY U3 and TWY U6 closed.
- TWY U4 and TWY U5 closed.
Figure 2 - AREA C04

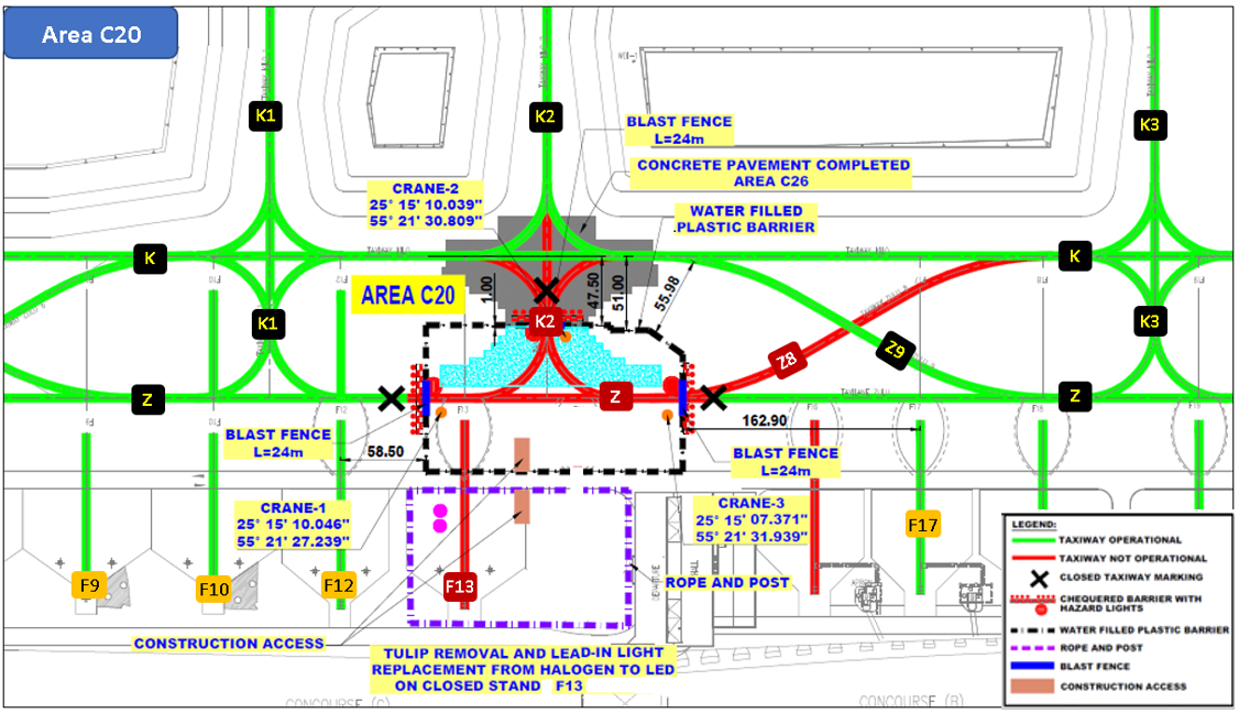

AREA C20
- Section of TXL Z between stand F12 and TWY Z8 closed.
- TWY Z8 closed.
- Section of TWY K2 between TWY K and TXL Z closed.
Figure 3 - AREA C20

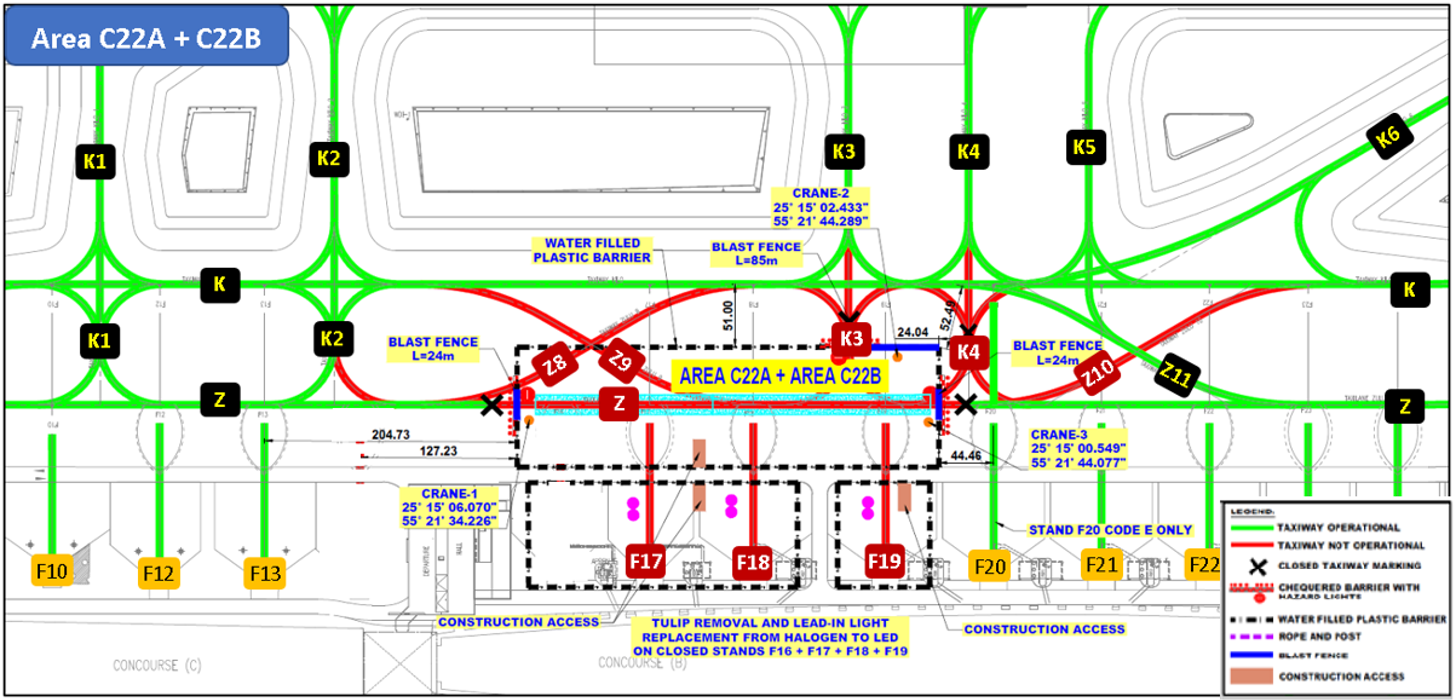

AREA C22A + AREA C22B
- Section of TXL Z between TWY Z8 and TWY K4 closed.
- TWY Z8, TWY Z9 and TWY Z10 closed.
- Section of TWY K3 and TWY K4 between TWY K and TXL Z closed.
- East link of TWY K2 onto TXL Z closed.
Figure 4 - AREA C22A + AREA C22B

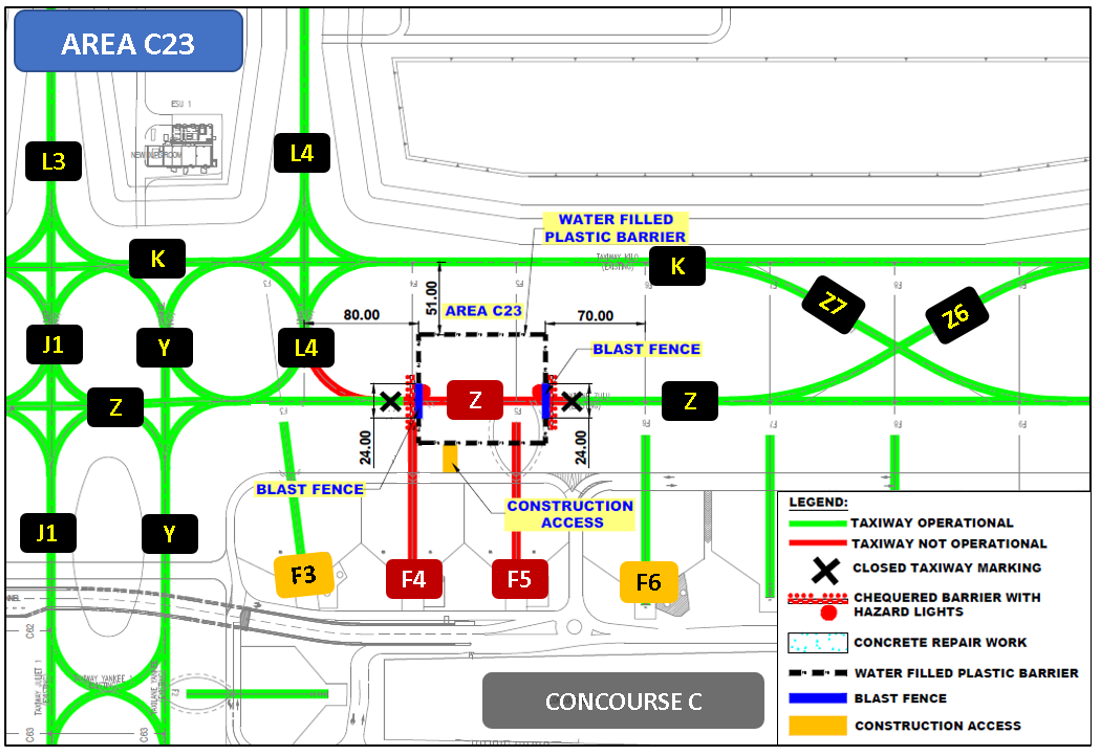

AREA C23
- Section of TXL Z between stands F3 and F6 closed.
- East link of TWY L4 onto TXL Z closed.
AREA C24
- TWY Z6 and TWY Z7 closed.
- Section of TXL Z between stands F8 and F10 closed.

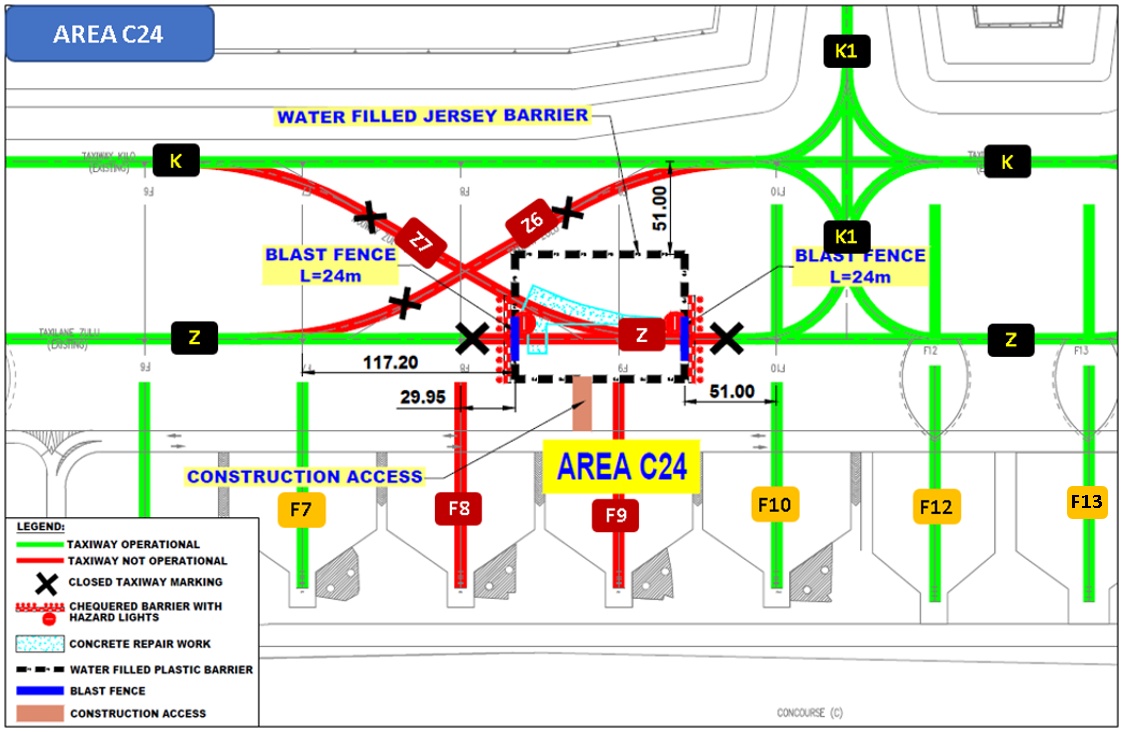

Figure 6 - AREA C24
PHASE 2
- Section of TWY N between TWY P1 and TWY P2A closed.
- TWY N1C, TWY N2, TWY N3 and TWY P2 closed.
Figure 7 - PHASE 2

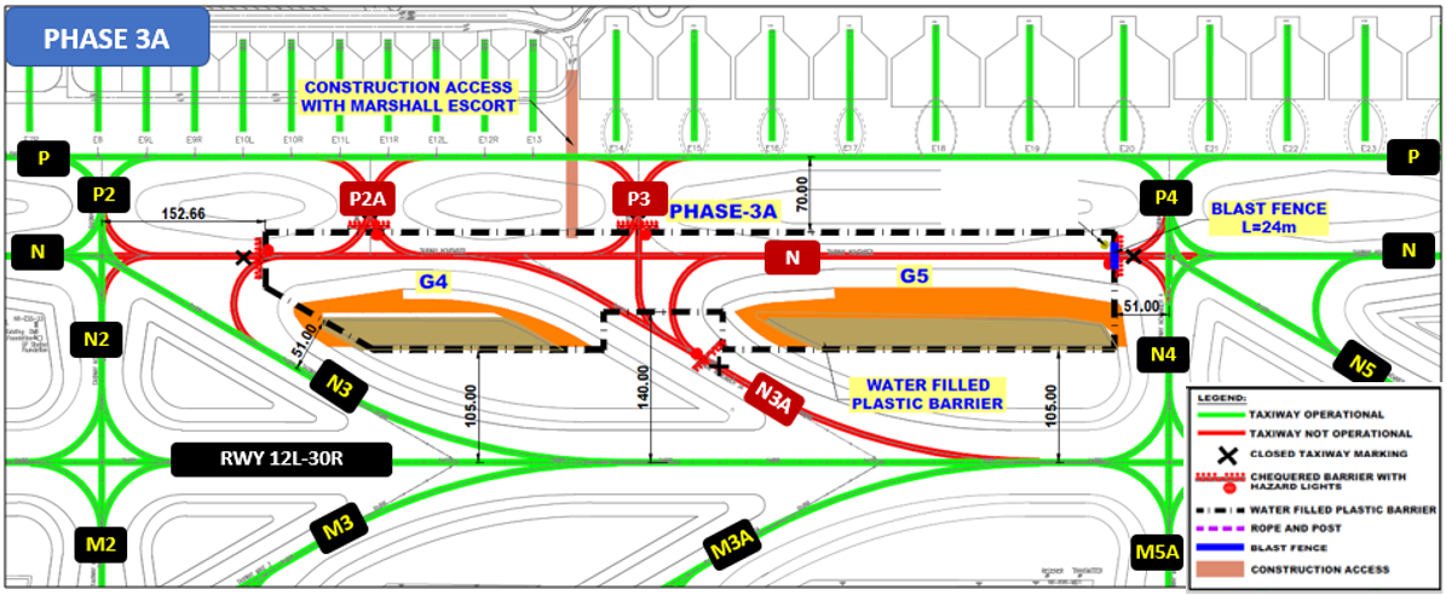

PHASE 3A
- Section of TWY N between TWY P2 and TWY P4 closed.
- TWY P2A, TWY P3 and TWY N3A closed.
- East link of TWY N3 onto TWY N closed.
- Pilots of aircraft vacating RWY 12L-30R via Rapid Exit Taxiway N5 to exercise caution due to worksite in proximity.
Figure 8 - PHASE 3A

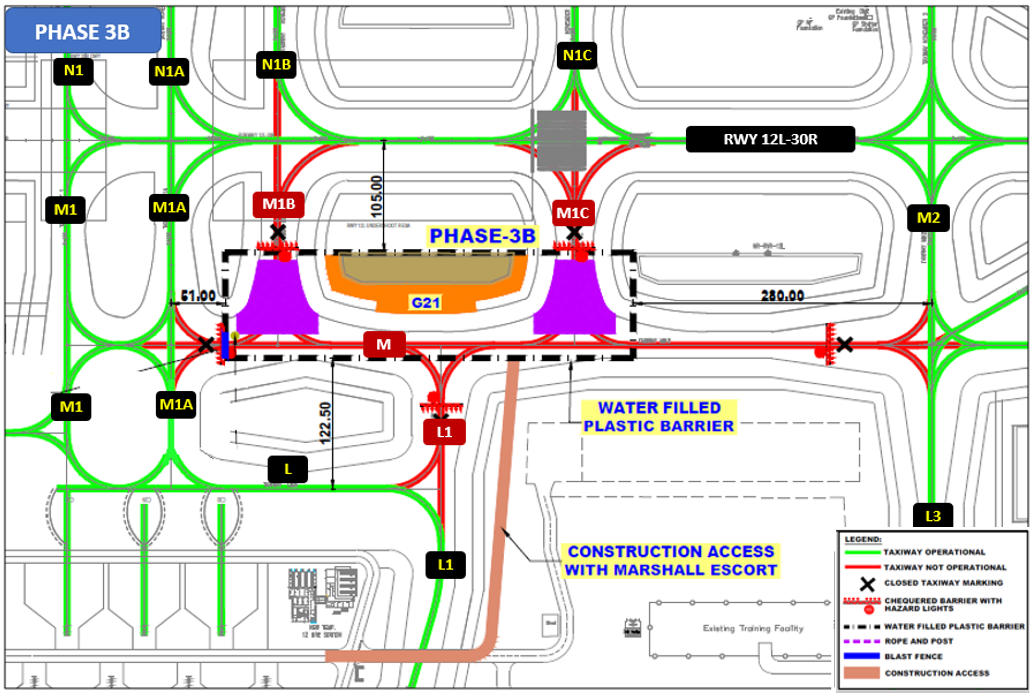

PHASE 3B
- Section of TWY M between TWY M1A and TWY M2 closed.
- TWY M1B and TWY M1C closed.
- Section of TWY L1 north of TXL L closed.
Figure 9 - PHASE 3B

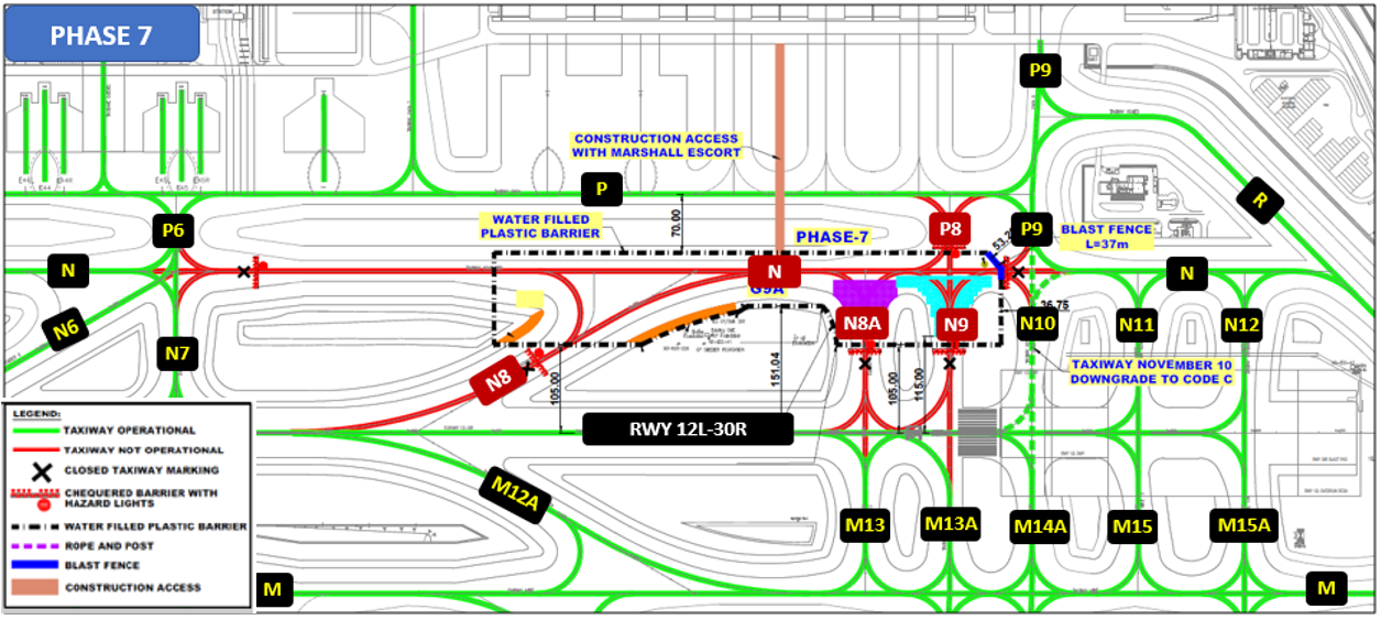

PHASE 7
- Section of TWY N between TWY P6 and TWY P9 closed.
- TWY N8, TWY N8A, TWY N9, and TWY P8 closed.
- TWY N10 downgraded to Code C and below aircraft operations.
Figure 10 - PHASE 7
PHASE 11
- Section of TWY M between TWY M13 and TWY M15 closed.
- East link of TWY M12A closed.
- TWY M13A, TWY M13B, TWY M14A and TWY M14B closed.

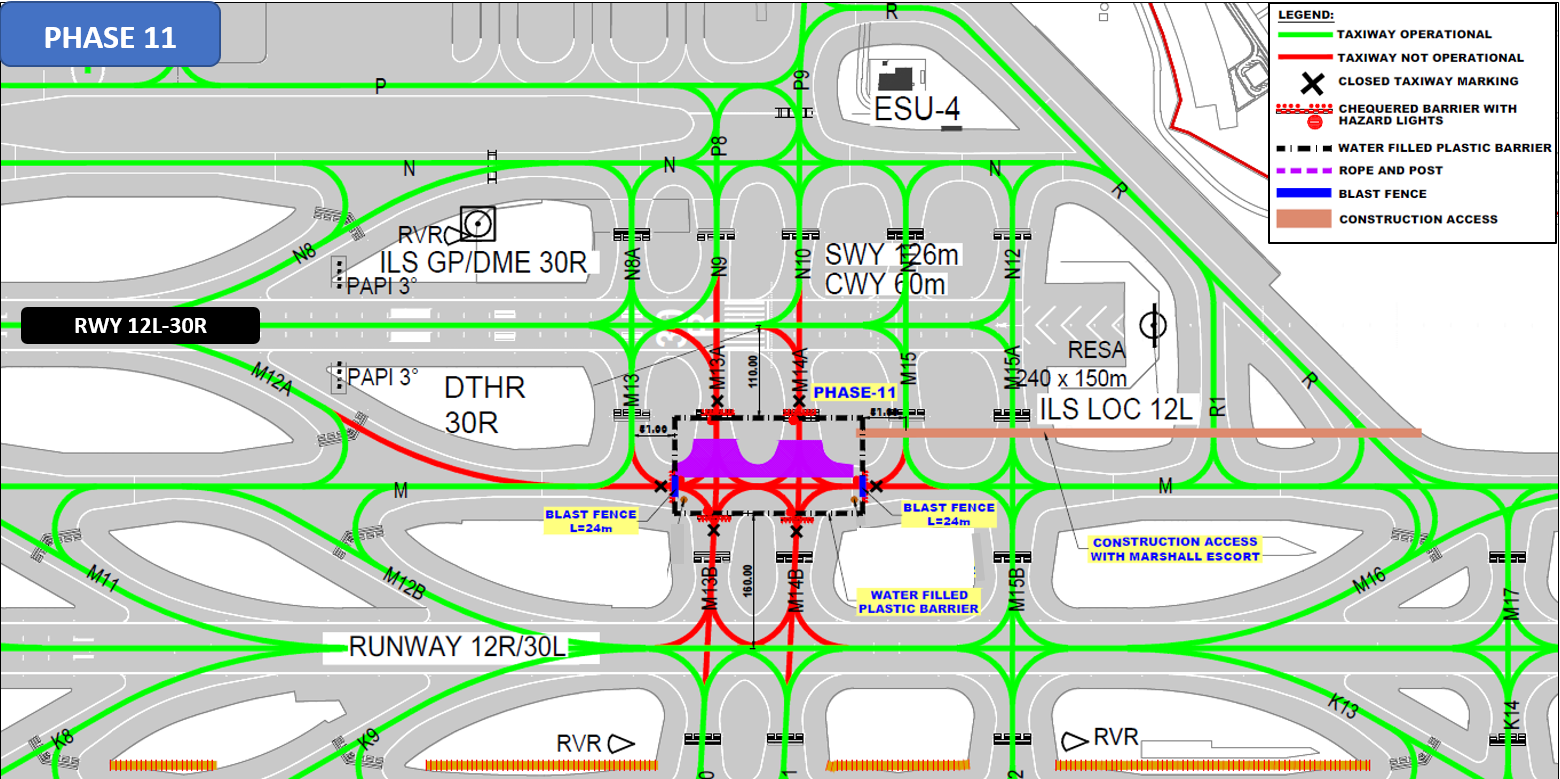

Figure 11 - PHASE 11
PHASE 12
- Section of TWY M between TWY M14A and TWY R1 closed.
- TWY M15, TWY M15A and TWY M15B closed.

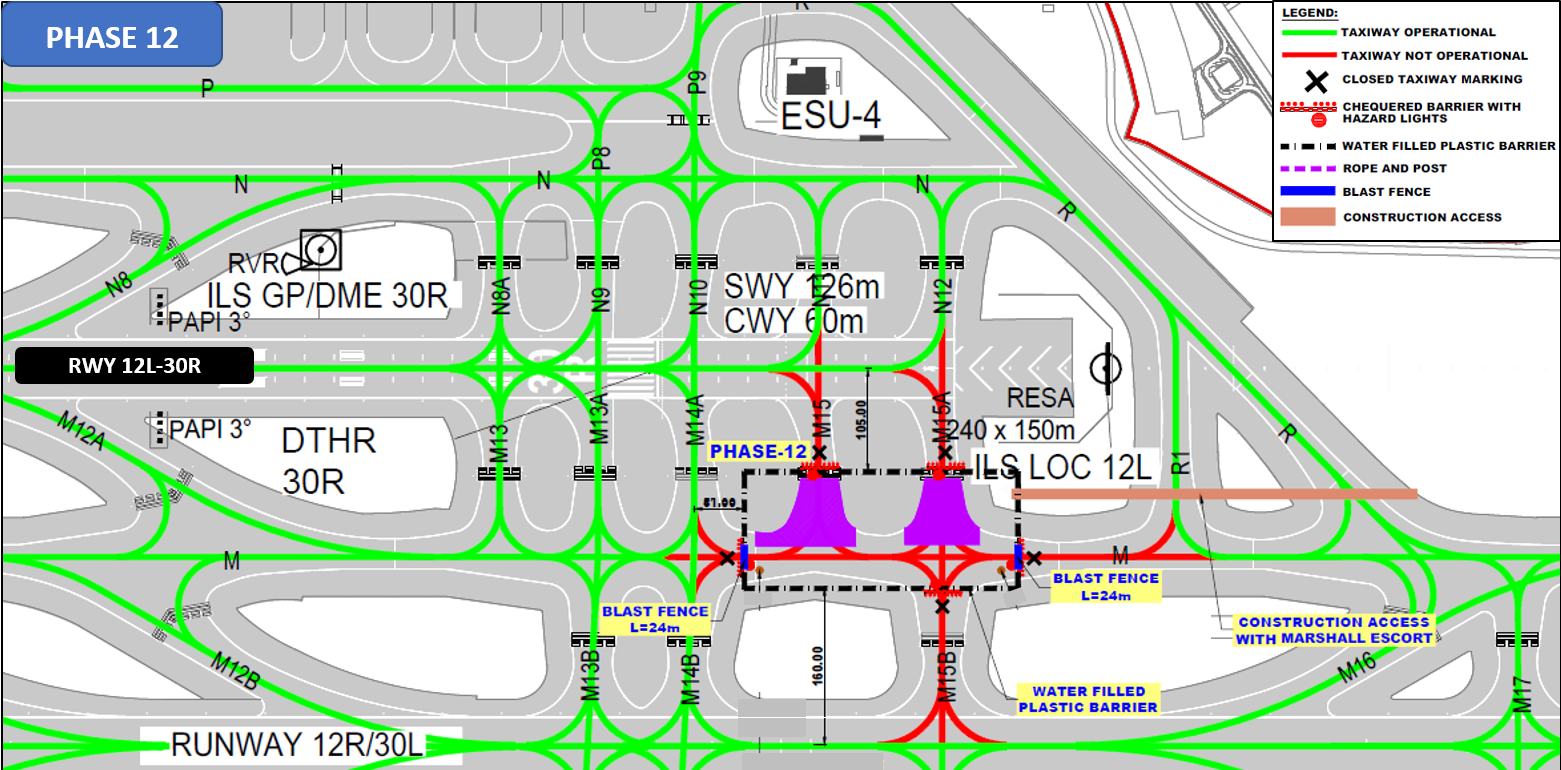

Figure 12 - PHASE 12
